Aqara Motion Sensor P1

Aqara / MS-S02, RTCGQ14LM

Last checked

Amazon links here are plain search links and earn this site no commission. Disclosure

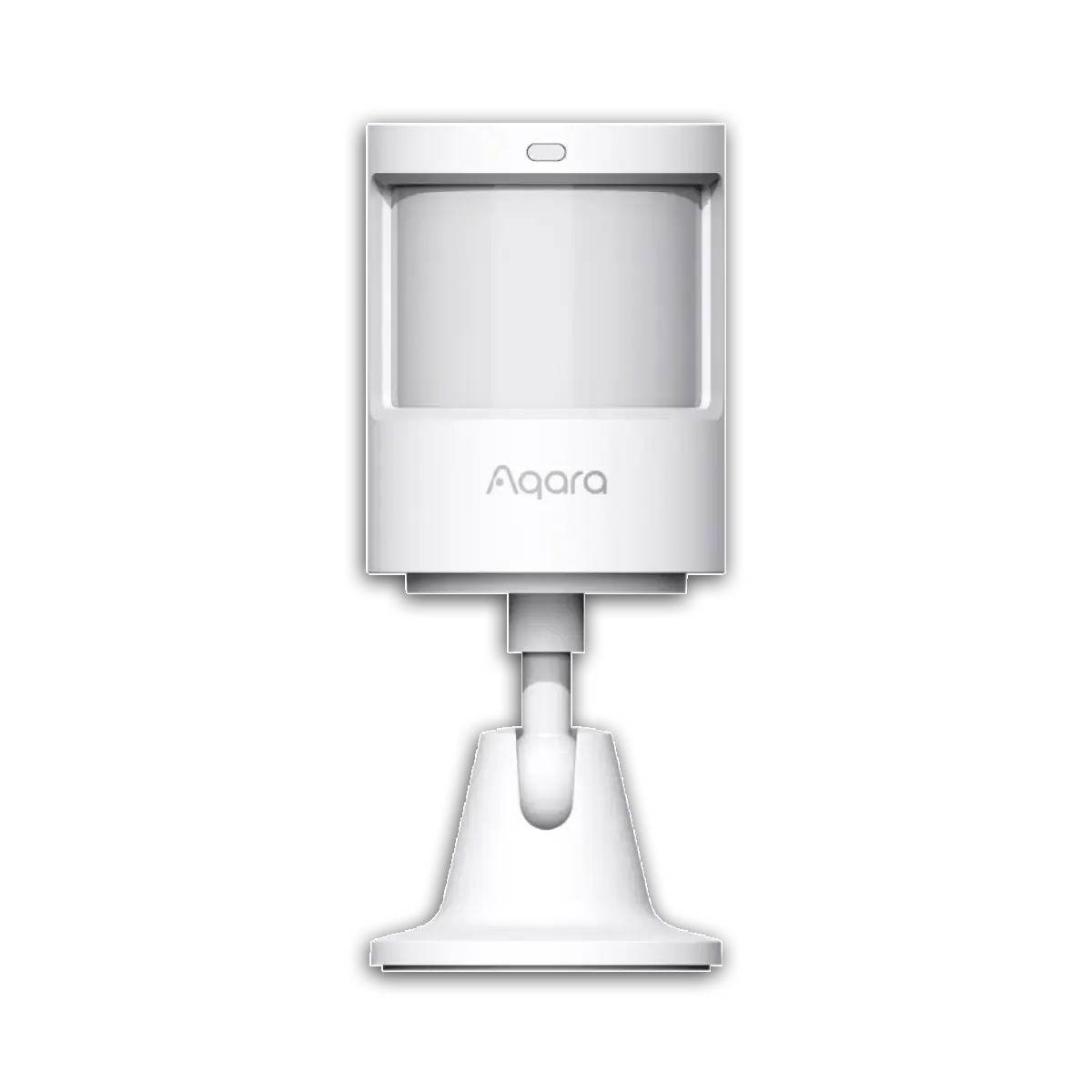

Aqara Motion Sensor P1, product photo
Image: Aqara

Does the Aqara Motion Sensor P1 work with HomeKit, Alexa, and Google Home?

The Motion Sensor P1 is Zigbee 3.0, so you need an Aqara hub.

Its detection timeout adjusts from 1 to 200 seconds. Two CR2450 coin cells are rated for up to 5 years. It suits Home Assistant users through an integration (a Matter bridge).

At a glance: works withHow this is decided: cited platform facts only
HomeKit
Unknown
Unknown
Google Home
Unknown
Unknown
Alexa
Unknown
Unknown
SmartThings
Unknown
Unknown
Home Assistant
Yes[1–4]
Matter via Bridge, via integration; 1 other path

Key facts

Aqara Motion Sensor P1 facts

How facts are sourced: every cell cites its source below
FactValue
StatusCurrent[5][6]
List price$22.99[7] as of
Sensor typeMotion[8]
Also measuresAmbient light (not exposed to HomeKit)[9]
RadioZigbee 3.0[10]
HubAqara Zigbee 3.0 hub, such as Hub M3, M2, E1, M1S Gen 2, Camera Hub G2H or G3. Not compatible with other brands' hubs.[8]
Matter pathBridged through a Matter-bridge Aqara hub[1][11]
Power and batteryBattery: 2x CR2450 (1240 mAh), up to 5 years[8][10]
DetectionMotion. Detection timeout adjustable 1-200 s, three sensitivity levels.[8]
Range or accuracy170 degrees to 4 m, 150 degrees to 7 m[8]
IP ratingunknown
Released2022-04 (international)[9]
RegionsUS and EU[5][6]

Integration paths

How the Aqara Motion Sensor P1 connects

3 pathsHow facts are sourced: every cell cites its source below
PathRequiresiLocaliFeatures lostPlatformsi
Matter via BridgeAqara hub with Matter bridging[1][11]unknownunknown
ZigbeeHUBAqara hub[8]unknownunknown
ZigbeeHUBZigbee coordinator software such as ZHA or Zigbee2MQTT[3][4]unknownunknown
About these columns
Requires
Hardware the path needs beyond the device and a controller.
Local
Yes when control on this path keeps working with the internet down.
Platforms
The platforms that work with the device on this path: Native (out of the box), Via integration (needs an add-on) or Not supported.

Home Assistant and Homey

Ways to add the Aqara Motion Sensor P1

4 routesHow facts are sourced: every cell cites its source below
PlatformLeveliIntegrationDetailsEvidenceLimitations
Home AssistantVia Zigbee/Z-Wave[3]zigbee2mqttZigbee
  • Works with Home Assistant: Not certified[3]
Model namedLimited: Needs minimum Zigbee coordinator firmware (CC2530/CC2531: 20211115 CC1352/CC2652: 20211114 CC2538: 20211222 Conbee II: 0x26720700); a device paired before the coordinator update has to be paired again[3]
Home AssistantVia Matter bridge[1][2]matterMatter via Bridge
  • Quality: No score[1][2]
  • IoT class: Local Push[1][2]
  • Works with Home Assistant: Not certified[1][2]
Model namedLimited: HA notes there is no guarantee every bridged device works; Needs an Aqara hub with its Matter bridge enabled[1][2]
HomeyOfficial app (local)[12]com.xiaomi-miZigbee
  • App: Official[12]
  • Runs on: Homey Pro, Homey Cloud[12]
Model namedNone stated
HomeyCommunity app[13]ai.zigbee.aqaraZigbee
  • App: Community[13]
  • Runs on: Homey Pro[13]
Model namedNone stated
About these columns
Level
How the device gets into the platform on this route. The headline is the best route: local before cloud, direct before bridged, core before community. The methodology page lists every level.

Releases

  1. 2022
    1. Released [9]

      International release
