Shelly 1PM Mini Gen4

Shelly / S4SW-001P8EU

Last checked

Amazon links here are plain search links and earn this site no commission. Disclosure

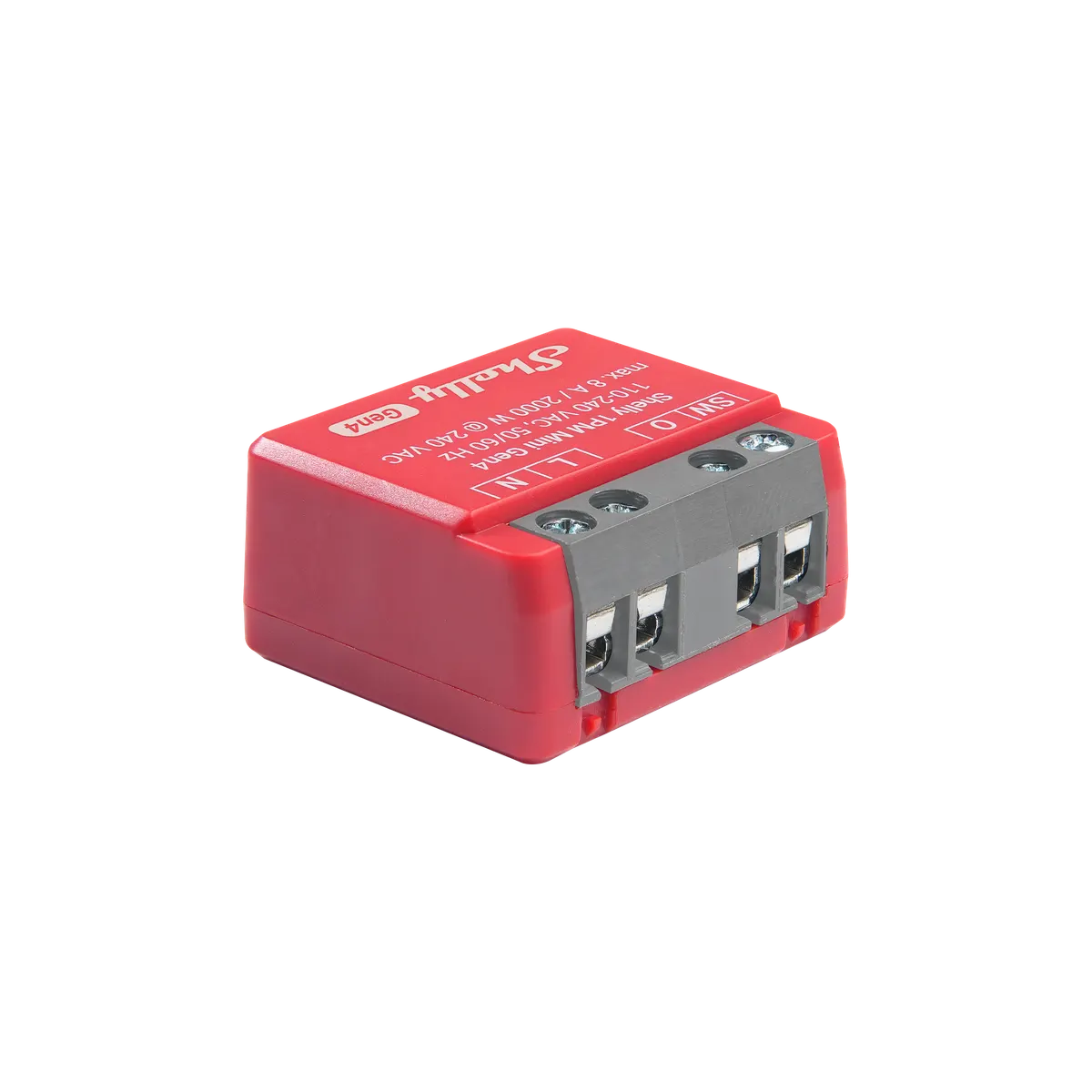

Shelly 1PM Mini Gen4 relay module with power metering
Image: Shelly press materials

Does the Shelly 1PM Mini Gen4 work with HomeKit, Alexa, and Google Home?

The Shelly 1PM Mini Gen4 is an 8 A one-channel relay that measures power and comes set up for Matter.

It has Wi-Fi 6, Bluetooth and Zigbee. It suits HomeKit users, with native support through Matter over Wi-Fi. Home Assistant users get native support through Zigbee. Google Home, Alexa and SmartThings users reach it through an integration (the maker's cloud).

At a glance: works withHow this is decided: cited platform facts only
HomeKit
Yes[1]
Matter / Wi-Fi, native
Google Home
Yes[2]
Wi-Fi cloud, via integration
Alexa
Yes[2]
Wi-Fi cloud, via integration
SmartThings
Yes[2]
Wi-Fi cloud, via integration
Home Assistant
Yes[3][4]
Zigbee, native; 1 other path

Key facts

Shelly 1PM Mini Gen4 facts

How facts are sourced: every cell cites its source below
FactValue
StatusCurrent[5][6]
List price$27.99[7] as of
GenerationGen4[8]
Model codeS4SW-001P8EU[2]
Power measurementPower measurement[2]
Neutral wireunknown
Max load8 A at 240 V~[2]
MountingIn-wall module (wall box)[2]
RadioWi-Fi 6, Bluetooth 5, Zigbee[2]
MatterBuilt in (default). Zigbee is the alternate profile.[2][9]
Local APIHTTP API, MQTT and webhooks[2][10]

Integration paths

How the Shelly 1PM Mini Gen4 connects

4 pathsHow facts are sourced: every cell cites its source below
PathRequiresiLocaliFeatures lostPlatformsi
Matter / Wi-FiMatter controller[2]unknownunknown
ZigbeeHUBZigbee coordinator[2]unknownunknown
Wi-Fi localNothing extra[2][4]Yes[2][4]unknown
Wi-Fi cloudVendor cloud account[2]No[2]unknown
About these columns
Requires
Hardware the path needs beyond the device and a controller.
Local
Yes when control on this path keeps working with the internet down.
Platforms
The platforms that work with the device on this path: Native (out of the box), Via integration (needs an add-on) or Not supported.

Home Assistant and Homey

Ways to add the Shelly 1PM Mini Gen4

3 routesHow facts are sourced: every cell cites its source below
PlatformLeveliIntegrationDetailsEvidenceLimitations
Home AssistantNative (local)[4]shellyWi-Fi local
  • Quality: Platinum[4]
  • IoT class: Local Push[4]
  • Works with Home Assistant: Not certified[4]
Product line namedNone stated
Home AssistantVia Zigbee/Z-Wave[3]zigbee2mqttZigbee
  • Works with Home Assistant: Not certified[3]
Model namedLimited: Ships in Matter mode; Zigbee use needs a switch to Zigbee mode (web UI, or press the button 5 times), after which it pairs for 3 minutes[3]
HomeyOfficial app (local)[11]cloud.shelly.controlWi-Fi localModel namedNone stated
About these columns
Level
How the device gets into the platform on this route. The headline is the best route: local before cloud, direct before bridged, core before community. The methodology page lists every level.

Releases

  1. 2025
    1. Certified Certified, not announced [9]

Certifications

Certification records

1 recordHow facts are sourced: every cell cites its source below
ProgramCertificateCertified onTransportSpec / softwareSource
MatterCSA250D7MAT45097-24wi-fi, bluetooth1.3.0-s2[9]
