Shelly Dimmer 0/1-10V PM Gen4

Shelly / S4DM-0010WW

Last checked

Amazon links here are plain search links and earn this site no commission. Disclosure

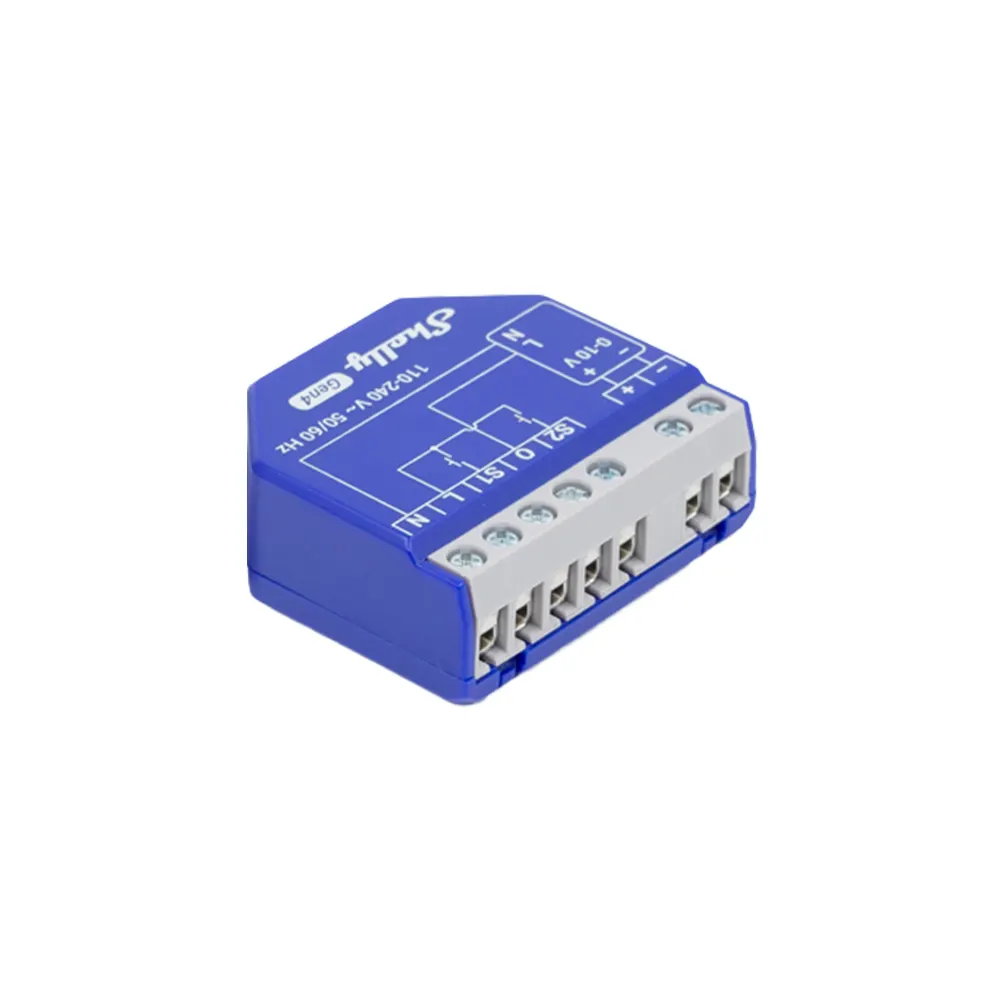

Shelly Dimmer 0/1-10V PM Gen4, product image
Image: Shelly

Does the Shelly Dimmer 0/1-10V PM Gen4 work with HomeKit, Alexa, and Google Home?

The Shelly Dimmer 0/1-10V PM Gen4 sends a 0-10 V or 1-10 V signal to dimming drivers and measures power.

It has Wi-Fi 6, Bluetooth, Zigbee and Matter. It suits Home Assistant users, with native support through Zigbee. Google Home, Alexa and SmartThings users reach it through an integration (the maker's cloud).

At a glance: works withHow this is decided: cited platform facts only
HomeKit
Unknown
Unknown
Google Home
Yes[1]
Wi-Fi cloud, via integration
Alexa
Yes[1]
Wi-Fi cloud, via integration
SmartThings
Yes[1]
Wi-Fi cloud, via integration
Home Assistant
Yes[2][3]
Zigbee, native; 1 other path

Key facts

Shelly Dimmer 0/1-10V PM Gen4 facts

How facts are sourced: every cell cites its source below
FactValue
StatusCurrent[4][5]
List price$34.99[6] as of
GenerationGen4[7]
Model codeS4DM-0010WW[1]
Control0/1-10 V signal for dimming drivers[1]
Max load13 A switching, 35 mA control current[1]
Power measurementVoltage and current[1]
RadioWi-Fi 6, Bluetooth 5, Zigbee[1]
MatterMatter and Zigbee[1]
Local APIHTTP API, MQTT and webhooks[1][8]

Integration paths

How the Shelly Dimmer 0/1-10V PM Gen4 connects

4 pathsHow facts are sourced: every cell cites its source below
PathRequiresiLocaliFeatures lostPlatformsi
Matter / Wi-FiMatter controller[1]unknownunknownunknown
ZigbeeHUBZigbee coordinator[1]unknownunknown
Wi-Fi localNothing extra[1][3]Yes[1][3]unknown
Wi-Fi cloudVendor cloud account[1]No[1]unknown
About these columns
Requires
Hardware the path needs beyond the device and a controller.
Local
Yes when control on this path keeps working with the internet down.
Platforms
The platforms that work with the device on this path: Native (out of the box), Via integration (needs an add-on) or Not supported.

Home Assistant and Homey

Ways to add the Shelly Dimmer 0/1-10V PM Gen4

3 routesHow facts are sourced: every cell cites its source below
PlatformLeveliIntegrationDetailsEvidenceLimitations
Home AssistantNative (local)[3]shellyWi-Fi local
  • Quality: Platinum[3]
  • IoT class: Local Push[3]
  • Works with Home Assistant: Not certified[3]
Product line namedNone stated
Home AssistantVia Zigbee/Z-Wave[2]zigbee2mqttZigbee
  • Works with Home Assistant: Not certified[2]
Model namedLimited: Ships with the Matter profile; Zigbee use needs a switch to the Zigbee profile (press the button 5 times)[2]
HomeyOfficial app (local)[9]cloud.shelly.controlWi-Fi local
  • App: Official[9]
  • Runs on: Homey Pro[9]
Model namedNone stated
About these columns
Level
How the device gets into the platform on this route. The headline is the best route: local before cloud, direct before bridged, core before community. The methodology page lists every level.
